首頁 » 邁動產品 » 傳動輪 » 鏈輪鏈條

產品 介紹Product

產品名稱：
24B鏈輪 28B錐套鏈輪 24B漲緊式鏈輪 鏈輪廠家
產品特性：
1、可適合長時間大扭力下工作，傳遞性能穩定。
2、大小輪傳動變化時產生速比的變化。
3、易安裝，好維護和方便潤滑，屬于實惠耐用傳動元件。
4、SC45鋼或鍛鋼，可附加工條件：調質淬火，發黑防銹處理。
5、批量生產加工周期：2~3周。
品牌：
邁動工業
材質：
SC45#鋼/鍛鋼
表面：
經調質精加工后淬火、發黑處理，表面光潔。
壽命：
正常使用2~3年
包裝：
邁動工業紙箱密封包裝
起訂量：
1
交期：
標準產品備有現貨庫存，批量生產2~3周交貨
  • 技術參數Parameter
  • 技術支持Support
  • 使用說明Direction
  • 購買咨詢Consultancy
  • 支付問題Pay
  • 發票與保修I & M
  • 其它問題Other





鏈輪分為主動鏈輪和從動鏈輪，主動鏈輪通過花鍵的形式裝在發動機輸出軸上；通過鏈條將動力傳遞給驅動輪，一般主動鏈輪比從動鏈輪要小，可起到降速增扭的效果。
錐套鏈輪的優勢特征：

1、錐套漲緊式設計，避免隱性公差，傳動精度高。

2、易安裝，好維護和方便潤滑，可適合長時間大扭力下工作。

3、屬于實惠耐用傳動元件大小輪傳動變化時產生速比的變化。

廣泛應用于農業機械、建筑機械、石油機械、采礦、起重、金屬切削機床等行業機械。


邁動24B系列漲緊式錐套鏈輪
邁動28B系列漲緊式錐套鏈輪
節距(Pitch)=38.1(mm)=1 1/2"節距(Pitch)=44.45(mm)=1 3/4"

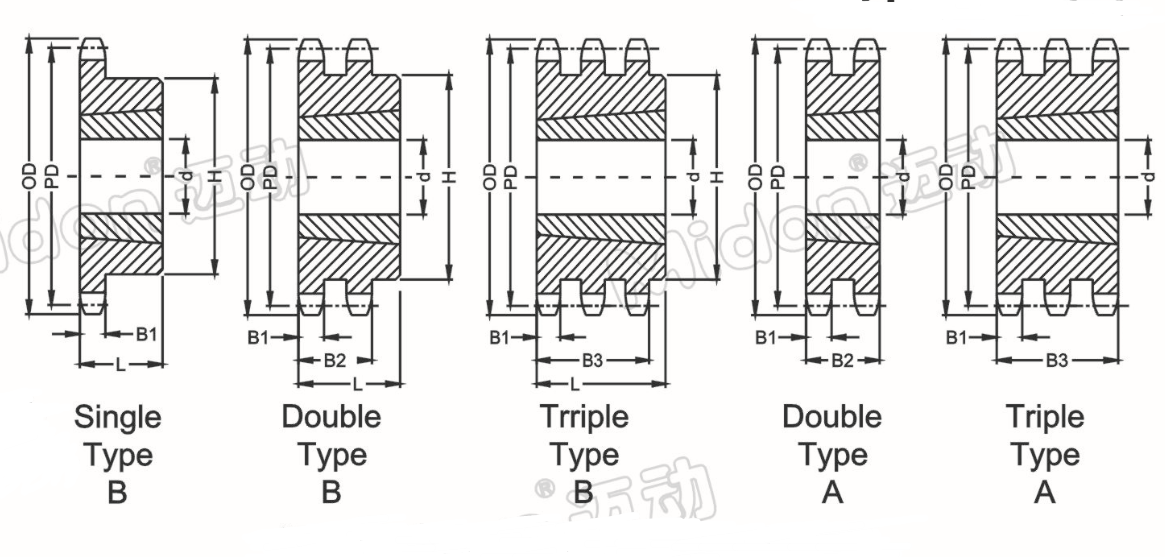

主要參數24B-1單排（Single）主要參數28B-1單排（Single）
齒數 Teeth外徑O.D節徑P.D型號/齒數-排數 錐套bush最大孔 MaxB型凸臺Hub重量  W.t齒數 Teeth外徑O.D節徑P.D型號/齒數-排數 錐套bush最大孔 MaxB型凸臺Hub重量  W.t
轂徑H輪厚L B型. Kg轂徑H輪厚L B型. Kg
11152.62135.2324B11-12012509031.82.9811178.05157.7728B11-1251760108455.03
12165.05147.2124B12-12012509031.83.1912192.56171.7428B12-1251760108455.36
13177.44159.2024B13-125176010844.54.2713207.01185.7528B13-130207513550.88.60
14189.79171.2224B14-125176010844.55.0414221.42199.7628B14-130207513550.89.74
15202.11183.2524B15-125176010844.55.8115235.79213.7928B15-130207513550.810.87
16214.40195.2924B16-130207513350.87.4716250.14227.8428B16-130207513550.812.46
17226.68207.3524B17-130207513350.88.1517264.46241.9128B17-130207513550.814.05
18238.94219.4124B18-130207513350.88.8318278.76255.9828B18-130207513550.815.19
19251.18231.4824B19-130207513350.89.5119293.04270.0628B19-130207513550.816.32
20263.41243.5524B20-130207513350.810.1920307.32284.1528B20-130207513550.817.00
21275.64255.6324B21-130207513350.810.6421321.58298.2428B21-130207513550.817.68
22287.85267.7224B22-130207513350.811.4522335.83312.3428B22-130207513550.819.61
23300.06279.8024B23-130207513350.812.2323350.07326.4428B23-130207513550.821.54
24312.26291.9024B24-130207513350.813.3724364.30340.5528B24-130207513550.823.47
25324.45303.9924B25-130207513350.814.5025378.53354.6628B25-130207513550.825.40
26336.64316.0924B26-130207513350.815.6326392.75368.7728B26-130207513550.827.33
27348.83328.1924B27-130207513350.816.2027406.96382.8828B27-130207513550.829.26
28361.01340.2924B28-130207513350.817.4028421.17397.0028B28-130207513550.831.19
29373.18352.2924B29-130207513350.817.4530449.58425.2428B30-130207513550.835.05
30385.36364.4924B30-130207513350.817.9032477.98453.4928B32-130207513550.838.91
32409.70388.7124B32-130207513350.818.4638563.10538.2728B38-1353510017288.950.60
38482.66461.3724B38-130307514076.228.5740591.46566.5428B40-1353510017288.952.99
40506.97485.6024B40-130307514076.232.0642619.81594.8228B42-1353510017288.955.38
42531.27509.8324B42-130307514076.235.5545662.33637.2228B45-14040110210101.665.62
45567.72546.1924B45-130307514076.240.7948704.85679.6328B48-14040110210101.669.44
48604.15582.5424B48-130307514076.246.0354789.85764.4628B54-14040110210101.677.09
50628.44606.7824B50-130307514076.249.5257832.34806.9028B57-14040110210101.680.91
54677.01655.2624B54-1353510017288.968.3260874.83849.3228B60-14040110210101.684.71
57713.43691.6224B57-1353510017288.976.4668988.11962.4628B68-14040110210101.694.90
60749.85727.9924B60-1353510017288.984.60721044.741019.0528B72-14040110210101.6100.00
68846.95824.9724B68-1353510017288.9106.31761101.371075.6228B76-14040110210101.6105.10
72895.49873.4624B72-1353510017288.9117.17951370.321344.3728B95-14040110210101.6129.30
76944.03921.9624B76-1353510017288.9128.02　
951174.561152.3324B95-14040110210101.6204.37
961186.691164.4624B96-14040110210101.6208.73
1141405.061382.7224B114-14040110210101.6287.20





【邁動工業】相關產品
脹緊套多鍥論、鏈條、齒輪
LOCK1邁動脹緊套LOCK4邁動脹緊套LOCK7邁動脹緊套LOCK19邁動脹緊套 邁動齒輪（MI~M6)
LOCK2邁動脹緊套LOCK5邁動脹緊套LOCK8邁動脹緊套LOCK20邁動脹緊套邁動板式鏈條
LOCK3邁動脹緊套LOCK6邁動緊脹套LOCK18邁動脹緊套邁動惰輪J型邁動多鍥論
皮帶輪同步輪
邁動錐套皮帶輪SPZ（1、2）槽邁動錐套皮帶輪SPA（1、2）槽邁動錐套皮帶輪（SPB（1、2)槽邁動錐套皮帶SPC（3、4)槽L型邁動直孔同步輪
邁動錐套皮帶輪SPZ（3、4）槽邁動錐套皮帶輪SPA（3、4)槽邁動錐套皮帶輪SPB（3、4)槽 邁動錐套皮帶輪SPC(5、6)槽H型邁動直孔同步輪
邁動錐套皮帶輪SPZ（5、6）槽邁動錐套皮帶輪SPA（5、6)槽邁動錐套皮帶輪（SPB（5、6)槽邁動錐套皮帶輪SPC（8、10)槽XL型邁動直孔同步輪
鏈輪同步輪
邁動 06B 08B系列漲緊式錐套鏈輪美標鏈輪（40、50歐標（06B、08B)系列直孔鏈輪 T5型邁動同步輪5M邁動同步輪
邁動 10B 12B系列漲緊式錐套鏈輪美標鏈輪（60、80）歐標（10B、12B)系列直孔鏈輪T10型邁動同步輪 8M邁動同步輪
邁動 16B 20B系列漲緊式錐套鏈輪美標鏈輪（100、120）歐標（16B、20B)系列直孔鏈輪AT5型邁動同步輪 14M邁動同步輪
邁動 24B 28B系列漲緊式錐套鏈輪美標鏈輪（140、160）歐標（24B、28B)系列直孔鏈輪AT10型邁動同步輪20M邁動同步輪










鏈輪排齒參數（美標、歐標）
美標
鏈輪號節距滾子直徑齒節高倒角高倒角寬弧半徑齒厚（1～4排）齒幅（2～3排）齒幅（4排）排距
SPROCKET NO:pitchRoller DiahACRT1T2/T3T4B2B3B2B3B4Pt
256.353.304.03.20.86.82.82.72.49.115.38.815.221.66.4
359.5255.805.04.81.210.24.34.13.814.224.413.92434.110.1
4112.707.777.07.01.119.22.8一一一一一一一一
4012.707.927.06.41.613.57.27.06.521.435.820.935.349.714.4
5015.87510.1610.37.92.016.98.78.47.926.544.62644.162.218.1
6019.0511.9111.89.52.420.311.711.310.634.156.933.456.279.07.0
8025.4015.8815.512.73.227.014.514.113.143.472.742.671.9101.229.3
10031.7519.0519.215.94.033.817.517.016.052.888.651.887.6123.435.8
12038.1022.2223.019.14.840.523.522.721.568.1113.566.9112.3157.745.4
14044.4525.4027.022.25.647.223.522.721.571.6120.570.4119.3168.348.9
16050.8028.5831.625.46.454.029.328.427.086.9145.485.5144202.558.5
18057.1535.7136.828.57.261.033.132.030.497.8163.696.2162227.865.8
20063.5039.6739.631.87.967.535.534.132.5105.7177.3104.1175.7247.371.6
24076.2047.6248.538.19.581.044.142.740.7130.5218.3128.5216.3304.187.8
歐標（A、B系列鏈輪主要參數）
鏈輪號節距滾子直徑齒節高倒角高倒角寬弧半徑齒厚（1～4排）齒幅（2～4排）排距
SPROCKET NO:pitchRoller DiahACRT1T2/T3T4B2B3B4Pt
4B644.130.662.62.52.4一一一一
5B855.340.882.82.72.68.313.919.45.6
6B9.5256.356.24.81105.35.25.015.425.635.610.2
8B12.708.518.46.41.3137.27.06.821.034.948.513.9
10B15.8810.1610.27.91.6169.19.09.025.642.258.816.6
12B19.0512.0711.29.521911.110.810.930.449.969.419.5
16B25.4015.8814.612.72.52616.215.815.847.779.6111.530.9
20B31.7519.0518.015.93.53218.518.218.254.691.0127.536.5
24B38.1025.4022.419.143824.123.623.672.0120.3168.748.4
28B44.4527.9424.922.254429.428.828.888.4148.0207.659.6
32B50.8029.2128.225.465129.428.828.887.4146.0204.658.6
40B63.5039.3734.931.886436.235.435.4107.7180.0252.372.3
48B76.2048.2641.838.197643.342.542.5133.7224.9316.191.2
56B88.9053.9850.244.5118950.749.649.6156.2262.8369.4106.6
64B101.6063.5057.850.81310257.956.756.7176.6296.5416.4119.9
72B114.3072.3966.057.21511465.263.863.8200.1336.4472.7136.3
